July 7, 2003

The Burr Box

As I was watching Amy carve one day, I noticed that her collection of burrs was rapidly outgrowing the tray thingy she was keeping them in. Two things came to mind...first, I was really glad that those weren't router bits...after all, you need a router for every bit, right? After I got done fantasizing about being buried up to my elbows in routers, I decided it was time to make a box.

I've seen some really beautiful wooden boxes of various shapes and sizes, some with inlays and all sorts of neat stuff. Personally, I just don't think I'm quite ready for that just yet. So, in an effort to retain what sanity I have left, I chose to keep the design simple.

The box is made up of 1/4" cherry with mitred corners. There are two 1/8" dadoes, one to hold the bottom and one to hold the piece that holds the bits, both of which float in the dadoes (see, Norm did teach me something!). I cut a 1/8"x1/4" rabbet in the top and attached it with glue. All the corners are rounded over to give the box a more finished look. This box is also finished with semi-gloss Arm-R-Seal.

Personally, I'm pretty pleased with the way it turned out. I was actually rather nervous about putting the hinges on the box as I was afraid to ruin what I had already accomplished. But as you can see from the pictures, the hinges went in without much of a hitch and the box is already being put to really good use.

The front of the burr box.

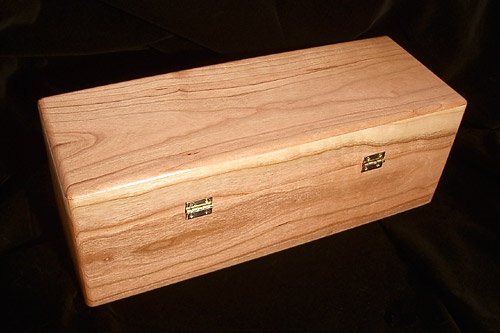

The back of the burr box.

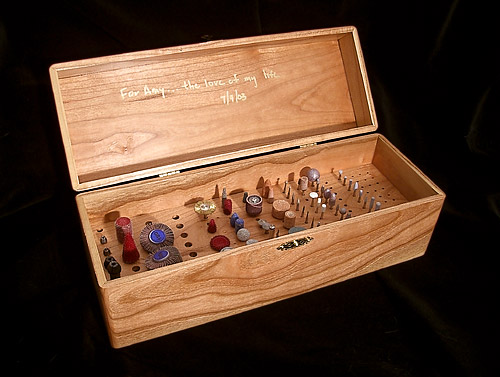

The inside of the burr box and Amy's collection of burrs and bits.


Posted by Rob at July 7, 2003 11:02 PM
